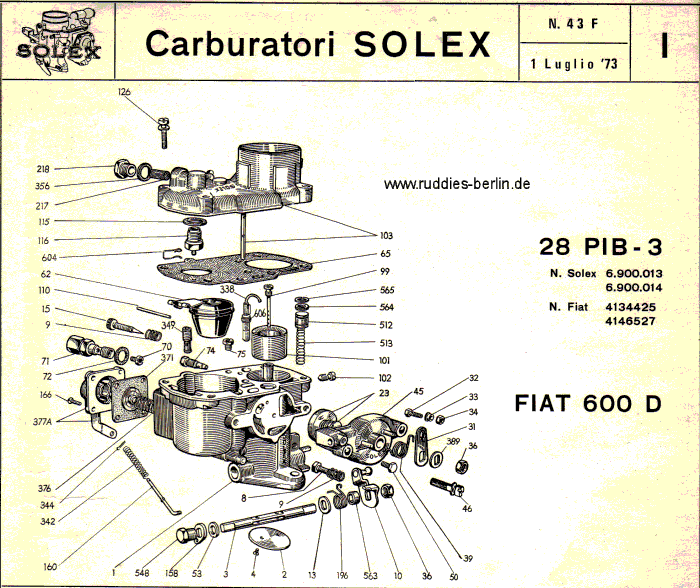

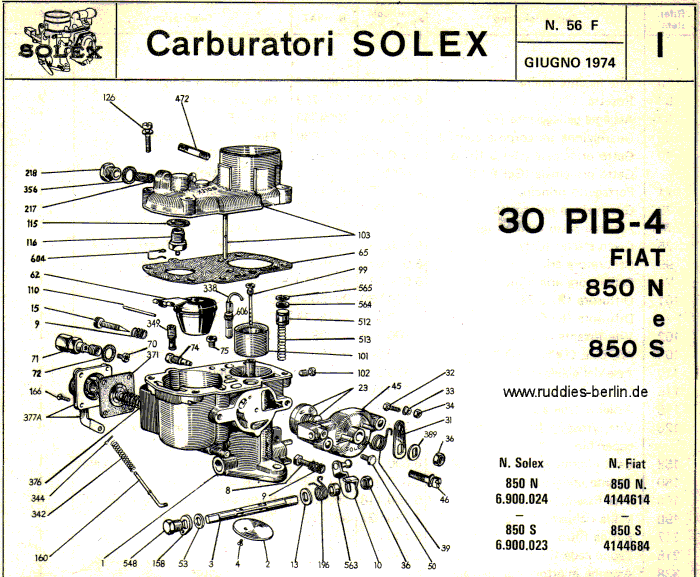

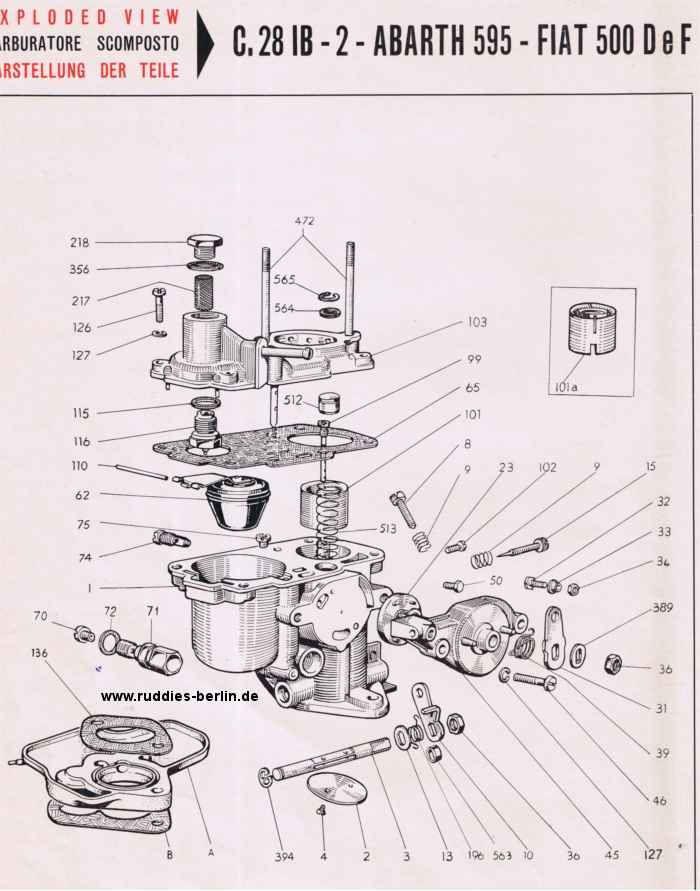

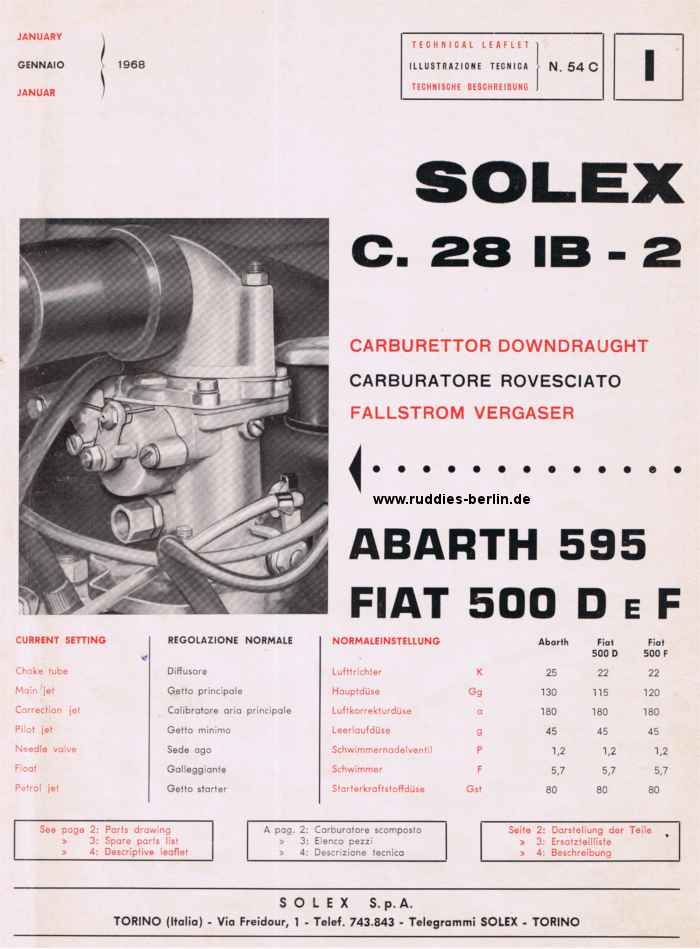

Fallstrom Vergaser  C22BICF + 28PIB-3   FIAT 600D  30PIB-4 FIAT 850N  + FIAT 850S  28IB 28IB-2

Weber Fiat 26IMB



                                                                                      Bild  00

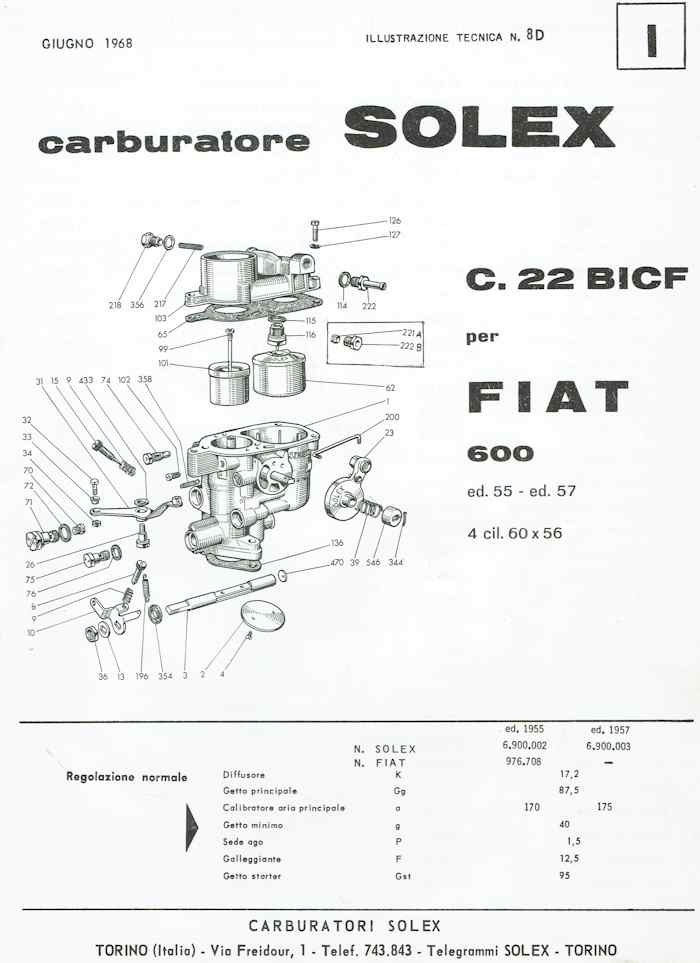

                            C22BICF  Fiat 600  1955  - 1957

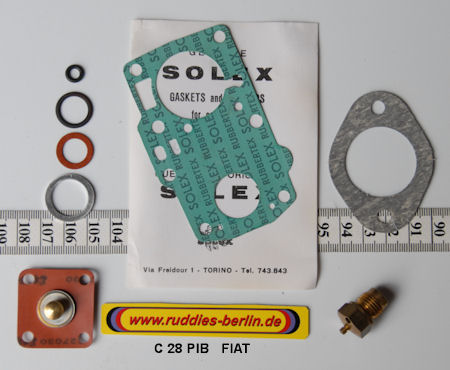

                            Dichtungssatz C22BICF = CR103J Fiat 600  / Dichtungssatz  F22BIC V4 Ren. 57715037
                                                                                          Bild  1



                                                                                     Bild  2

                 6900024   6900023  4144614   4144684   6900013   6900014  4134425   4146527  /  371 Membrane = 6.550.004   6550004

                                                                                  Bild  3




                                   6910013 =  6910021   6920021  =  6.920.021  =  4.04803.00
                    371 Membrane 9913532 = 6550004   / 116  Schwimmernadelventil 1,5 m12x1,5  9904180 = 6200001 6200006 = 59860715
                   338  Einspritzrohr  = C22004 = 9913530 = 6020022 = i55  /  9915037 =  6020020 = i45
                   606 O-Ring / E-Rohr 9913534 = 6500063 = 3.44005.00


                                Weber 26IMB 1011  FIAT  92007905     9921311                           F22BIC  22BIC  Dichtungssatz  J15  = 57715037
Ersatzteile+Kleinteile-Sätze Frankreich
